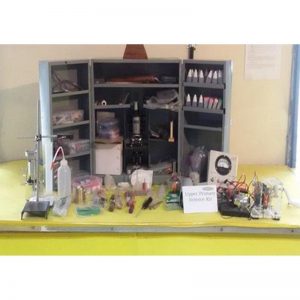

Upper Primary Science Lab Kit

Upper Primary Science Lab Kit:

National Council of Educational Research & Training (NCERT), New Delhi, an autonomous organization under Ministry of Human Resource Development (MHRD), Government of India (GOI), has empanelled SCIENTIFIC INSTRUMENT TRADERS for manufacturering and supplying of Educational School kits developed by NCERT

We are manufacturing and supplying superior quality Science Kits. Manufactured using premium quality raw material that assure its robust construction, corrosion & break resistance and longer service life, our offered products are highly appreciated all across the nation.

c. Detailed Specifications (Annx-1 to Annx-13) of the Educational School Kits :

Upper Primary Science Kit (UPSK) Technical Specification

ANNEXURE -1

Sl. No.	Name of the Item	Technical Specification	Quantity
1	Kit manual	Kit manuals may be purchased from sales counter of Publication Division, NCERT, New Delhi. The price of all the kit manuals are ranging Rs.50 to 300/-	1 No.
2.	Kit box with carton 6 ply	Main Body of 26 SWG and partitions of tin sheet. Doors will be fitted 15 mm above the ground level with main body. Right hand door and left hand door should have two racks. The rack partition should have guides The doors should have suitable piano hinges duly spot welded/riveted etc. with main body. Provision for locking system & two folding type handle 6 mm dia. for carrying box. Provision for supporting rest for hanging doors to be made . All over box size 470 mm x 450 mm x 280 mm box weight should be 5.75 kg. + 100g.	01 No.
3.	Panel for Connections	MDF Wooden box / plastic ABS 170 mm x 140 mm, Taper 50 mm back and 25 mm front side, painted white, markings in black. DC Voltmeter : 0 – 20 V with resolutions of 0.4 V. 0 – 1 Amp. with resolutions of 20 mA. Rectifier : Four diode rectifier bridge circuit (Full wave rectification of AC). Panel connections : For input / output etc.	1 No.
4	Light Emitting Diode (LED)	Standard	1 No.
5	Laboratory Thermometer	Glass, alcohol filled, -10º C to 110º C, graduation 1º C with card board/plastic cover and cotton at both ends.	1 No.
6	Clinical Thermometer	Oral Clinical thermometer along with packing, graduation 95º F – 108º F and 35º C – 43º C. ISI mark.	1 No.

7	Spherical Plano Concave Lens and Double Convex Lens	Three perspex pieces: Spherical Plano Concave Lense, Double Convex Lense and Plano Convave Lense. Each made from Perspex sheet of size 50 mm x 20 mm x 12 mm/15mm.	1 set
8	Perspex Plano Convex Cylindrical Lens	Dia = 25/28 mm, half of the diameter x 13/14 mm height.	1 No.
9	Square Glass Slab	Square glass slab, size 50 mm x 50 mm x 12 mm thick.	1 No.
10	Triangular Glass Prism	Glass Prism 25 mm equilateral triangle.	01 No.
11	Generator Assembly	Assembled in perspex transparent sheet, stable body, overall height 130 mm, thick rectangular base 170 mm x 120 mm attached with two coils, output 15 V and 500 mA.	01 No.
12	Boiling Tube	Borosilicate Glass, 90 mm height x 20 mm dia with cork.	02 Nos.
13	Y-Tube	Borosilicate Glass tube, diameter 12 mm. Overall length 105 mm fitted with cork (To fit into item No.15 bell jar inner side).	01 No.
14	Cover slips	Thickness 0.2-0.3 mm approx. 18 mm square glass pieces.	20 Nos.
15	Bell Jar	Borosilicate 3.5 mm thick glass, neck inside dia. 18/19 mm × 20/22 mm height. Overall length 85/95 mm × inside dia. 55 mm with rim diameter 62/64 mm. To fit into item No.13 inner side item no. 28 upper side and item no. 73 upper side mouth.	01 No.
16	Double mouthed flask	Borosilicate. Thickness 1.5 mm with one mouth dia. 26 mm x 25 mm height (with rim) and other dia. 06 mm x 28 mm length. Bulb outer dia. 48 mm with overall length 110 mm. Item no. 63 fit into upper mouth.	01 No.

17	Glass Tube	Length 155 mm x outer dia. 06 mm, Soda glass, ends finished.	01 No.
18	Glazed Glass Plate	Glass plate size 100 mm x 100 mm x 2.5 mm/3mm.	01 No.
19	Double Concave Lens	Glass, Focal length 20 cm and dia. 50 mm.	01 No.
20	Double Convex lens	Glass, Focal length 20 cm and dia. 50 mm.	01 No.
21	Concave Mirror	Glass, Focal Length 20 cm, dia. 5 cm.	01 No.
22	Convex Mirror	Glass, Focal Length 20 cm, dia. 5 cm.	01 No.
23	Graduated Syringe	Standard, plastic, capacity 10 mL.	01 No.
24	Half Protractor	Transparent, plastic, standard, 0 – 180º.	01 No.
25	Ping pong ball	Standard dia 40.	01 No.
26	Thermocol Ball		20 No.
27	Transparent PVC plastic tube	Dia 8 mm x 1 meter	01 No.
28	Electroscope Assembly	(i) Alumunium Disc dia. 52 mm and thickness 24 SWG (ii) aluminium rod dia. 03 mm and length 50 mm. fitted in center of disc (iii) rubber cork axial length 25 mm. and dia. of smaller face 17 mm inserted in the aluminium rod with bigger face touching the disc. iv) Aluminium rod has a right angle bent of length 08 mm from the outer end. .	01 set
29	Plastic sheet HDPE	Size 100 mm x 100 mm x 3 mm.White milky.	01 No.
30	Plain mirror strips	Good quality, 150 mmx30 mm x2 mm.	03 Nos.

31	Magnifying glass	Optical glass, focal length 120 mm, with plastic handle.	02 Nos.
32	Glass slides	Standard plain glass slide.	10 No.
33	Permanent Glass slides	Hydra showing budding. Packed in plastic case.	01 No.
34	Permanent Glass slide	Amobea showing Binary Fission. Packed in plastic case.	01 No.
35	Permanent Glass slide	Paramecium Packed in plastic case.	01 No.
36	‘G’ Clamp	50 mm jaws, maximum opening 40 mm, with two locking screws and holes. HDPE.	02 Nos.
37	Glass Rod	Length 150 mm, dia. 06/07 mm.	02 Nos.
38	Fuses & Model showing heating effect of current	Resistance wire enclosed in transparent plastic container of dia. 25 mm and height 50 mm and eureka wire 40 SWG.	01 No.
39	Ray Streak Box	U shape mild sheet of 24 SWG. Size of the front face: 80 to 100 mm x 70 mm with M shape window of size of 30 mm x 30 mm starting from centre bottom side of front face. Size of two side faces: 40 mm x 70 mm. butt welded to the front face. Size of the M shape window cover: 30 mm x 40 mm. Front face, projected to the height of 15 mm having 3 slits of 0.75 mm thickness starting from bottom. Height of slits 30 mm, second slits at the centre. Distance between the slits 5 mm. Screw type bulb holder spot welded from inside of front face at the centre of the window. Having one bulb 3.2 V, bulb to be projected in the windows of front face. Complete apparatus painted black colour.	01 set
40	Four cell holder	Cell holder for 4 ‘D’ type cells. Box outer size 135 mm x 75 mm x 35 mm. height with cover.	01 No.

41	Rubber bands		30 Nos.
42	Rubber suckers	Standard, 50 mm diameter.	02 Nos.
43	Rubber Cork	Standard, arm bed, size nos. 2,3,4,5 and 6.	02 each
44	Thin rubber sheet	100 x 100 x 2 mm	01 No.
45	Magnetic Compass	Metal case, polystyrene transparent top, magnetized needle with north marked red and south marked blue, 50 mm size.	01 No.
46	U shape Magnet	Arm length 50 mm, N and S poles to be marked. Alnico	01 No.
47	Bar Magnet	Size 75 mm x 12 mm x 08 mm, red colour N and S pole mentioned. Alnico	02 No.
48	Cylindrical Magnet	Diameter 16 mm and length 25 mm. Ferrite	01 No.
49	Ring Magnet	Outer diameter 18 mm and thickness 3 mm. Ferrite	01 No.
50	Disc Magnet	Diameter 35 mm and 8 mm thick. Ferrite	01 No.
51	Spirit Lamp	Steel body along with brass wick holder dia 65 mm, height 50 mm	01 Nos.
52	Colour Disk	Thick ivory white card sheet of diameter 100 mm, with seven colours sectors and pasted on generator wheel. (1st Sector) – 70 º – Lemon Yellow No. 121 (2nd Sector) – 65 º – Light Green No. 165 (3rd sector) – 450 – Turquoise Blue No. 163	01 No.

		(4th Sector) – 40 º – Prussian Blue No. 149 (5th Sector) – 45 º – Mauve No. 161 (6th Sector) – 50 º – Orange No. 143 (7th Sector) – 45 º – Poster Red No. 116 Total : 360 º ,
53	Aluminium Ruler cum Lever	Anodized Aluminium Ruler 29 mm x 300 mm x 1.5 mm. Marking in inch, cm and mm (smallest division 1/10″ and 01 mm respectively). Graduation printed in black. With holes (diameter 2.5 mm) at 3 cm intervals.	01 No.
54	Plug Key	One way plug key (Brass), base 80 mm x 55 mm.	01 No.
55	Copper Wire	100 cm long, thickness 24 SWG.	01 No.
56	Copper Strip	80 mm x 5 mm x 1 mm	01 No.
57	Zinc Strip	80 mm x 5 mm x 1 mm	01 No.
58	Magnesium Ribbon Roll	Fine Quality role. 25g.	01 No.
59	Test tube holder	Length 200 mm, to hold the test tubes upto 10 mm dia and one for 20 mm dia boiling tube.	01 each
60	Rods with holder for conduction of heat	Total length of holder 215 mm/220 mm with plastic/wooden handle at one end and brass pipe I.D. 6.3 mm x 50 mm at another end forming T shape. M.S rod & aluminum rod shall be 200 mm length. And Dia. 6 mm grooved on rod ten equal segments.	01 Set
61	Tuning Fork	Mild Steel Chapter 06 mm x 3.4 mm, prongs 110 mm long, frequency 256 Hz.	01 No.
62	Slinky	Steel Wire Spiral roll, outer dia. 52 mm and close size 68 mm to 70 mm.	01 No.

63	Deflagrating Spoon	Diameter 12 mm, MS Sheet Katory welded with 02 mm dia MS wire. Overall height 165 mm, along with cork (to fit into item no. 16) of bigger dia 24 mm, smaller dia 18.5 mm and length 26.5 mm	01 No.
64	Periscope (Frame with mirror)	Body hollow PVC pipe ID 60 mm, length 250 mm half cut at the opposite ends to fit 50 mm plane mirrors with rotable frame.	01 No.
65	Scalpel	Overall length 140 mm/150 mm cutlery steel, blade tempered (standard).	01 No.
66	Tongs pair	Dia 05 mm, overall length 160 mm, chrome plated.	01 No.
67	Surgical Scissor	125 mm, one prong blunt and other pointed, standard.	01 No.
68	Claw hammer with handle	Forged, approximate weight 225 gm with wooden handle.	01 No.
69	Steel Ball	Steel Ball with a hook, diameter 19/20 mm.	01 No.
70	Steel Wire (Sitar String)	Steel, length 100 cm, thickness 24 SWG.	01 No.
71	Banana plug connecting wire	Standard with two way connection. Two red wire and two black.	02 sets
72	Crocodile Clips	Clips 38 mm, Plated, standard flexible wire 50 cm long. Each set two wire.	05 sets
73	Stainless steel electrode with cork	Rubber cork of axial length 25.5 mm, smaller face dia 17 mm, bigger face dia 25 mm,fitted to stainless steel electrodes of length 70 mm and thickness 02 mm. Both electrodes have 90 degree bent of length 10mm. (To fit into item No. 15 bell jar).	01 sets


74	Knife	100 mm x 1.5 mm, hardened steel, with wooden handle.	01 No.
75	Screw driver	100 mm long, hardened, with plastic handle dia. 20/25 mm.	01 No.
76	Bottle opener with cork screw and screw driver	Standard, overall length 140 mm, with cork.	01 No.
77	Shaving Blade	Standard.	01 No.
78	Dissecting Needle	Standard, length 110 mm, with plastic handle.	02 Nos.
79	Iron filings	Packed in 15 dia vial.	20 g
80	Iron Nails	Length 38 mm, 15 SWG	10 Nos.
81	Iron Nails	Length 25 mm, 15 SWG	10 Nos.
82	Emery paper	Standard, 100 number.	1 sheet
83	Sand paper	Standard, 60 and 120 number.	1 sheet each
84	Candle	Size 200X15 mm.	02 No.
85	Filter Paper	Ordinary. Circular of dia. 100 mm	10 Nos.
86	Plastic Strip	Plastic strip 200 mm x 25 mm x 3 mm and one side pasted woolen cloth 100 x 25mm.	01 No.
87	Silk cloth	Size 200 mm x 200 mm.	01 No.

88	Woolen Cloth	Size 200 mm x 200 mm, dark colour.	01 No.
89	Thermocole sheet	Size 100 mm x 100mm x 25 mm.	01 No.
90	1 c.c. spoon	Specification : HDPE, white, 1cm cubic and overall length 100 mm.	02 Nos.
91	Spring balance	A.B.S , open type, capacity 250 g graduation in steps of 10 g on one side and Newton’s on the other side.	01 No.
92	Decimeter cube vessel	Transparent polystyrene. Inside dimension 100 mm x 100 mm x 100 mm top open, 9 lines at 1 cm distance on one side 100 equal 1 cm square on the other.	01 No.
93	Laboratory Stand 1) Boss head 2) Clamp	MS rod dia. 10 mm x 375 mm long, MS base, CI Boss head and aluminium clamp.	01 each
94	Sun dial	Plastic base dia. 100 mm-110 mm x 3 mm with graduation and base should be white milky colour.	01 set
95	Pulley with frame & Rod	Plastic pulley dia. 50 mm attached with frame 75 mm x 17 mm of MS 24 SWG and L type rod of dia. 6 mm, overall length 115mm bent at 15 mm at 90 degree.	02 Nos.
96	Aluminium wire and pointer	Aluminium wire 3 mm dia x 45 cm length and pointer.	01 set

97	Bimetallic strip	Frame – MS Rod, 6 mm dia. with MS and brass strips joined,	01 No.
98	Set of four resistors 5 ohm, 10 ohm (2 Nos.) 20 ohm	15 mm x 15 mm x 125 mm with nicrohme wire resistance, embedded in plastic case.	01 set
99	Circuit Board	Complete with plastic base, battery holder, bulb holder with bulb 3.2 V, switch, banana sockets with one bulb extra.	01 set
100	Measuring cylinder	Plastic, transparent with built in base, 100 mL graduation (min 1 mL).	01 No.
101	Plastic Boxes	1. 220 mm x125 mm x 85 mm. 2. 172/175 mm x130 mm x70 mm	1 each
102	Litmus paper	Red and Blue colour	5 booklet each
103	Plastic Funnel	Plastic, transparent top dia, 50 mm	01 No.

104	Micro Test Tube 4 mL	Borosilicate glass, diameter 10 mm x 45 mm height with rim.	10 Nos.
105	W Tube	Borosilicate glass, 2 mm thick x 8 mm dia. having length of arm 70-75 mm with wide mouth in one arm.	05 Nos.
106	China Dish	Outer diameter 70 mm/75 mm.	01 No.
107	Micro Spatula	Stainless steel 100 mm length.	01 No.
108	Forcep	Stainless steel 100 mm long pointed	02 Nos.
109	Micro Test Tube Brush	Soft hairs for 4 mL test tube cleaning.	01 No.
110	Tripod Stand	Height 100 mm cast iron top 7 cm x 7 cm x 7 cm triangle, legs dia 4 mm iron body.	01 No.
111	Pasteur Pippette	Low density poly ethylene (LDPE) capacity 3 ml with screw type and nozzle.	10 Nos.
112	Dispensing Bottle	Low Density Poly Ethylene (LDPE) capacity 15 ml	20 Nos.
113	Plastic Vials .	High Density Poly Ethylene (HDPE), height 55 mm, diameter 15 mm.	15 Nos.
114	Micro Test Tube Stand	Acralic Plastic moulded, size 100 mm x 27 mm x 20 mm 04 blind holes to hold Micro Test Tubes depth of hole 15 mm.	02 Nos.
115	Rubber Balloons	5 small and 5 big (in a packs of 10)	01 packet
116	Cotton Thread	Reel in white colour.	01 No.

117	Wash Bottle	LDPE, capacity 125 mL.	01 No.
118	Petri dish	Soda glass dish outer dia. 80 mm x 25 mm depth.	01 No.
119	Beaker (50 mL)	Borosilicate glass, capacity 50 mL, height 56 mm, diameter 42 mm with rim.	01 No.
120	Watch glass	Soda glass, diameter 50 mm.	01 No.
121	Mirror/Lens stand	Wooden / Plastic mirror stand 120 mm 30 mm x 75 mm. Height with slot.	01 No.
122	Cotton Roll	Weight: 50 gm	01 No.
123	Single Holed cork	Standard, size no.7 hole 6 mm	02 Nos.
124	Plastic straw/glass tubes	130-150 mm and Dia.6 mm.	05 Nos.
125	Transparent plastic bag	Medium Sized 200 mm x 200 mm.	02 Nos.
126	Thick Black paper	10 cm x 10 cm	04 Nos.
127	Muslin cloth	15 cm x 15 cm	04 Nos.

128	Iodine solution	Packed in LDPE Dispensing bottle of 60 ml.	01 No.
129	Alum crystals	Packed in plastic container-50 gm	01 No.
130	Pressure table	It may include a piece of soft wood (10 cm x 10 cm x 10/12 mm) with four holes (about 0.1 cm dia.) near four corners. Provide for nails each of 8/10 cm length. The head of nails should be broad.	01 set
131	Wire Gauge	100mm X100mm with frame	02 Nos.
132	Compound Microscope (optional)	ISI Based microscope: Metal Body, overall height approx. 320 mm, base 125 mm x 200 mm. Achromatic good quality lenses. Two Objectives: 10X & 45X. Two Eyepieces: 10X & 15X having coarse fine motion & fixed condenser.	01 No.
		Visual Cards Size 21 cm x 30 cm plastic coated card
133	Amoeba	Standard,	1 No.
134	Hydra	Standard,	1 No.
135	Spirogyra	Standard,	1 No.
136	Rhizopus	Standard,	1 No.
137	Bacteria	Standard,	1 No.
138	Yeast	Standard,	1 No.
139	Nostoc	Standard,	1 No.
140	Anopheles (mosquito)	Standard,	1 No.
141	Peel of leaf showing	Standard,	1 No.

	stomata
142	Life cycle of silk moth	Standard,	1 No.
143	Stages in seed germination	Standard,	1 No.
144	Locomotion in earthworm and snail	Standard,	1 No.
145	Desert Plants	Standard,	1 No.
146	Aquatic Plants	Standard,	1 No.
147	Vegetative Propagation	Standard,	1 No.
